Phosphine (PH₃) detection is increasingly common in industrial safety, agricultural production and environmental monitoring. With a wide variety of gas sensors available on the market, how to select a suitable RS485 PH₃ sensor? The key points below can serve as your reference.

1. Measuring Range and Resolution

Clarify the on-site PH₃ concentration range before selection. This sensor adopts an electrochemical principle, with a measuring range of 0~1000 ppm and a resolution of 0.1 ppm, ideal for scenarios requiring high-precision monitoring. If the on-site concentration frequently approaches or exceeds the upper limit of the range, select a model with a wider measuring range or higher protection grade.

2. Communication Protocol and System Compatibility

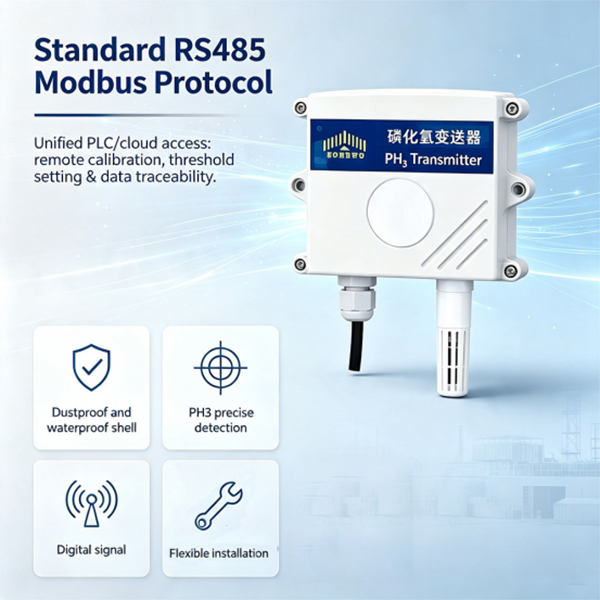

The device is equipped with an RS485 interface and supports standard ModBus RTU protocol. Default address: 0x01; default baud rate: 9600 bit/s; 8 data bits, no parity, 1 stop bit, CRC check. Before use, verify that your PLC, configuration software or data acquisition terminal supports ModBus RTU. Note that the A/B wires must not be reversed. When networking multiple devices, avoid duplicate addresses. A 120 Ω terminating resistor or RS485 repeater may be added if necessary.

3. Power Supply and Installation

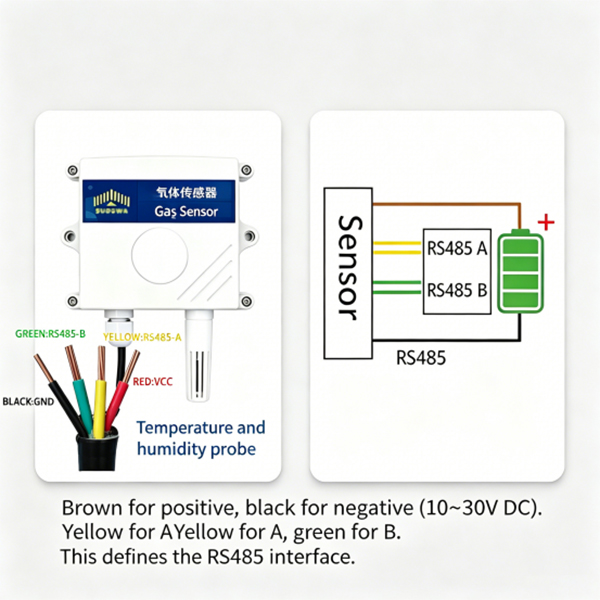

The device supports wide DC power input of 5~28 VDC, compatible with various on-site DC power supplies. Wiring definition: Brown (or Red) → Power Positive; Black → Power Negative; Yellow → RS485-A; Green → RS485-B. The sensor comes with a wall-mounted waterproof housing, dimension approx. 110 × 85 × 44 mm for wall installation. Avoid locations with strong air convection, organic solvents, corrosive gases or high-concentration alkaline gases, or reinforce protection measures. Otherwise, sensor service life and zero-point stability may be impaired.

4. Environmental Adaptability and Additional Functions

The sensor integrates temperature and humidity monitoring: temperature range -40~+80 ℃ with accuracy ±0.3 ℃; humidity range 0~99.9 %RH. Recommended operating environment: -20~50 ℃, 15%~90%RH non-condensing. Long-term operation under high humidity is not recommended. Data refresh interval: ~2 seconds. Typical sensor service life: less than 2 years. It supports zero-point calibration, modification of device address and baud rate, facilitating maintenance.

5. Application and Safety Limitations

This product applies to industrial safety, agricultural production, environmental monitoring and other fields. However, the manual clearly states: Do NOT use it for life safety systems. Perform regular calibration after installation. If the sensor has been idle for a long time, conduct 24-hour aging before use. Keep it away from high-concentration organic gases, corrosive gases and strongly alkaline environments during operation.

Summary

When selecting an RS485 PH₃ sensor, match the measuring range, protocol, power supply, environmental conditions and maintenance requirements. Only by cross-checking on-site requirements against product parameters item by item can you obtain a stable, reliable and easily integrated PH₃ monitoring solution.https://www.zonewuiot.com/rs485_c17
